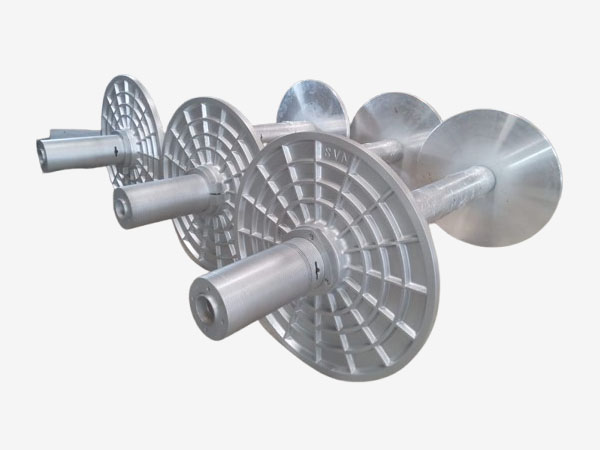

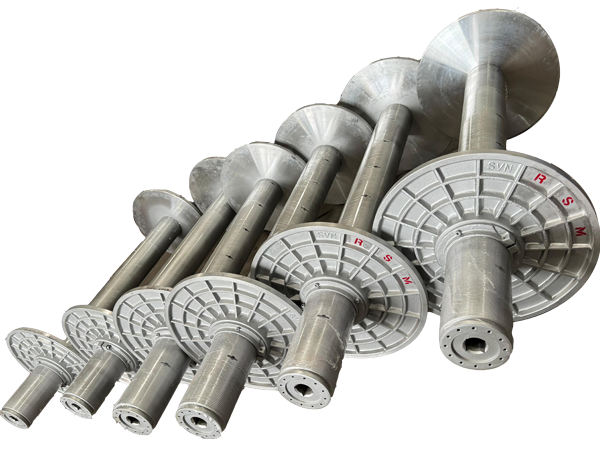

• Weaver’s beams are designed for compatibility with TOYOTA, TSUDAKOMA, PICANOL, ITEMA, RED FLAG, SULZER, SOMET, DORNIER, VAMATEX, SMIT, and other Air-Jet and Rapier weaving machines, available in single-section and twin-section configurations.

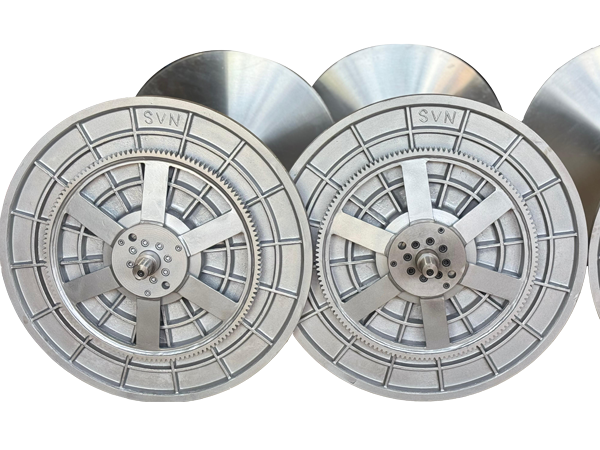

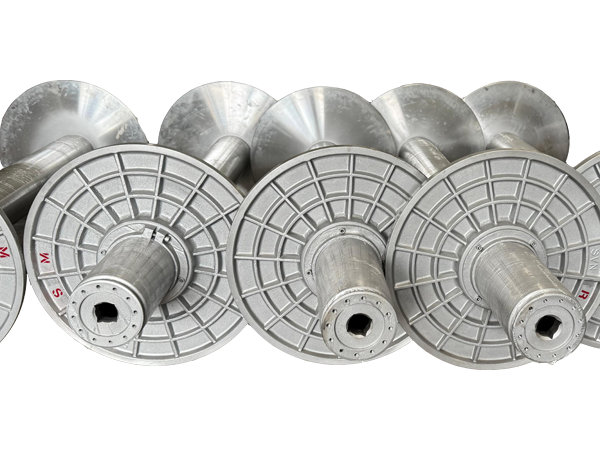

  • Flanges are manufactured from Gravity Die-Casting Method Using LM24 Graded Aluminum Alloys, standard flange diameters ranging from Ø710 mm to Ø1100 mm, with high structural rigidity.
  • The Beam Barrel is Produced from ASTM GR106 Graded Mild Steel Tubes, providing excellent strength, dimensional stability, and resistance to torsional and bending loads during high-speed weaving operations.
  • The assembly includes precision-machined locknuts and drive gears manufactured from High Graded Steel Alloys offering superior load-carrying capacity and wear resistance.
  • The weaver’s beam functions as a warp storage and delivery system, maintaining uniform yarn tension, accurate warp alignment, and controlled yarn feed throughout the weaving process.
  • The design is optimized to withstand continuous cyclic loading, high rotational speeds, and operational stresses commonly encountered in modern textile weaving machines.

Suitable For :

  • Toyota
  • Tsudakoma
  • Picanol
  • Itema
  • Red Flag
  • Somet
  • Vamatex
  • Dornier
  • Smit
  • Sulzer and Other Rapier Machines with Single Or Twin

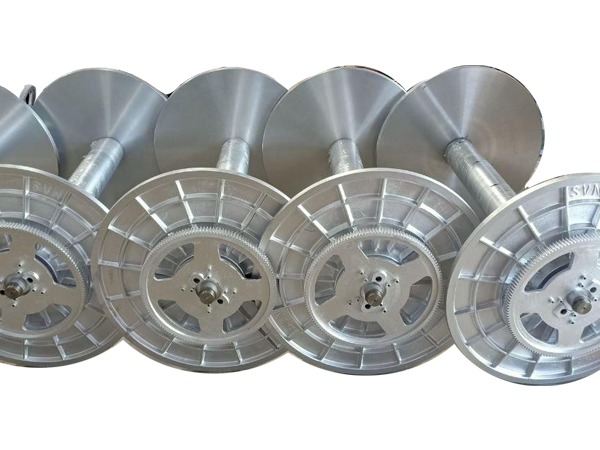

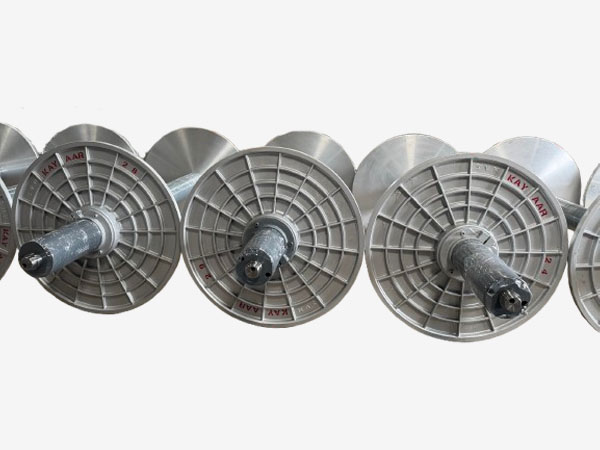

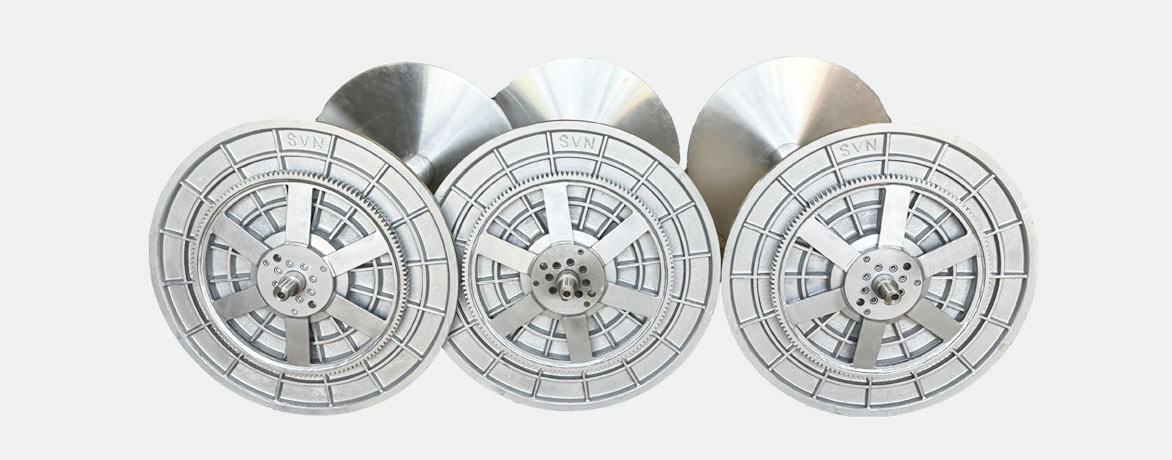

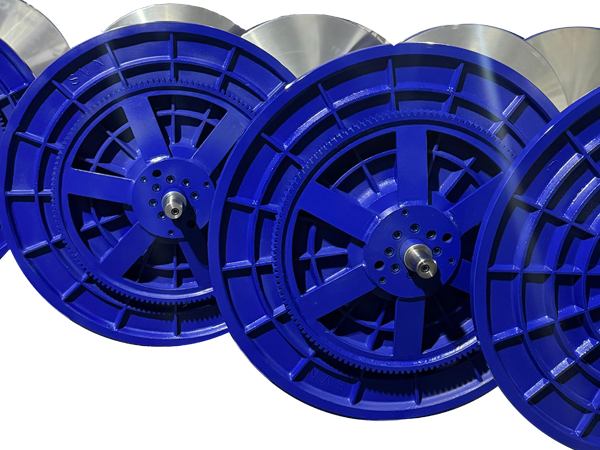

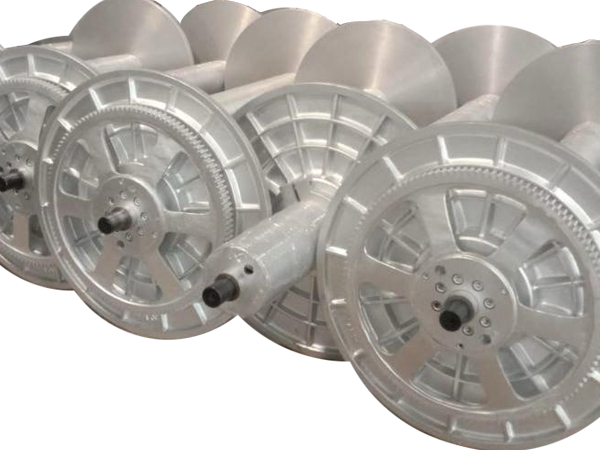

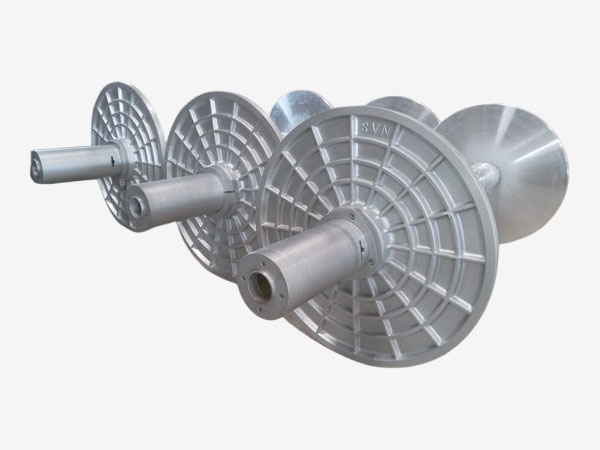

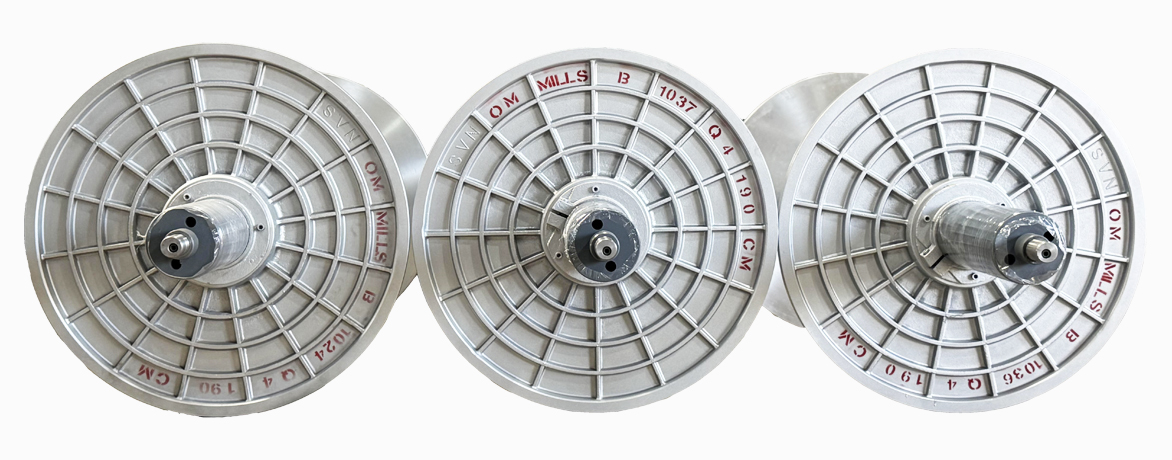

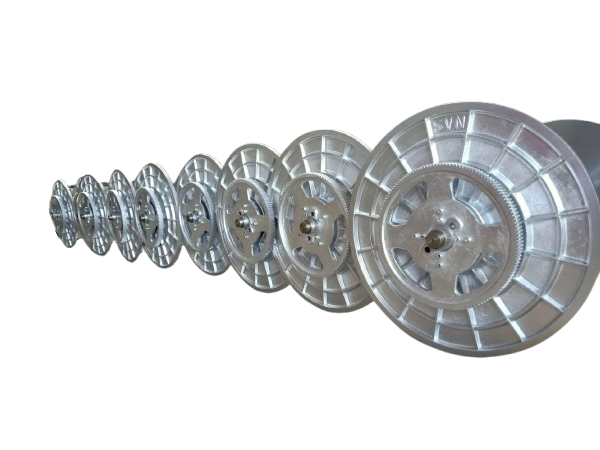

Products Gallery
